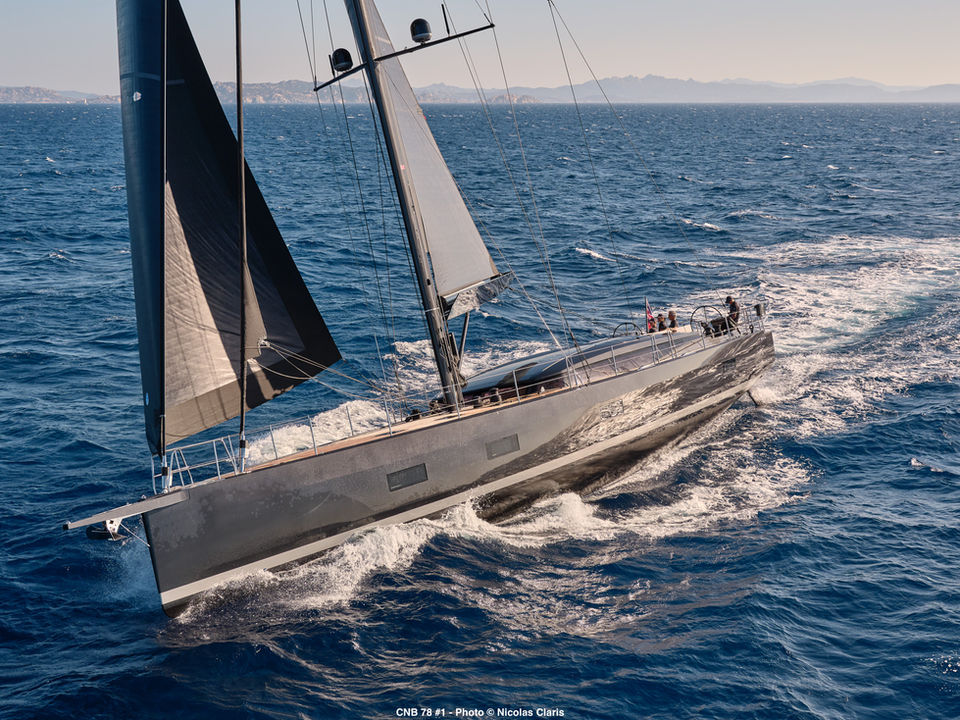

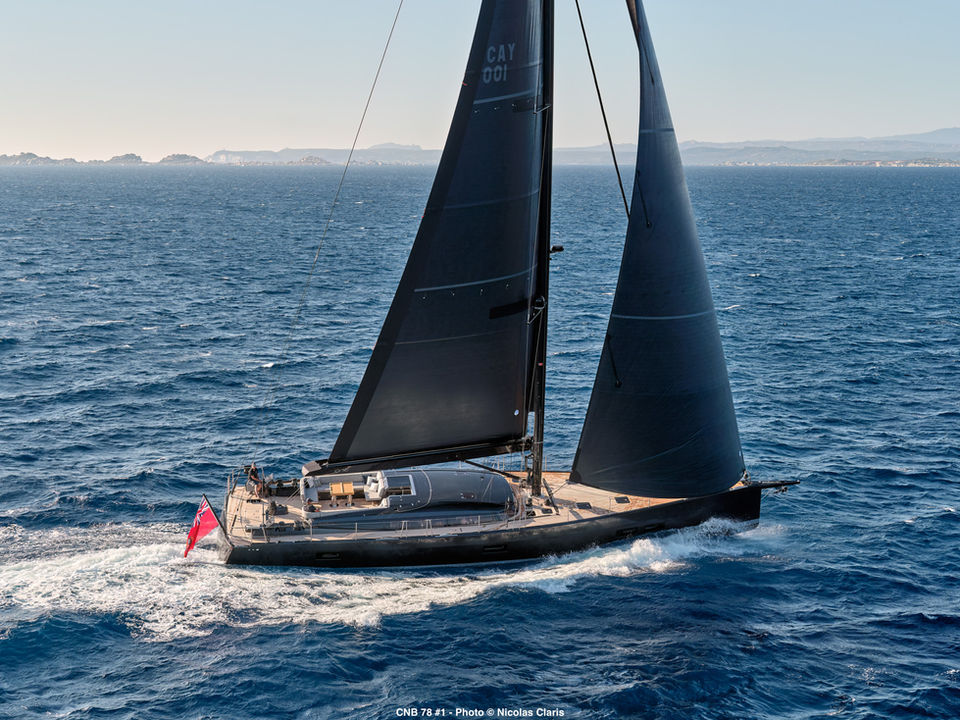

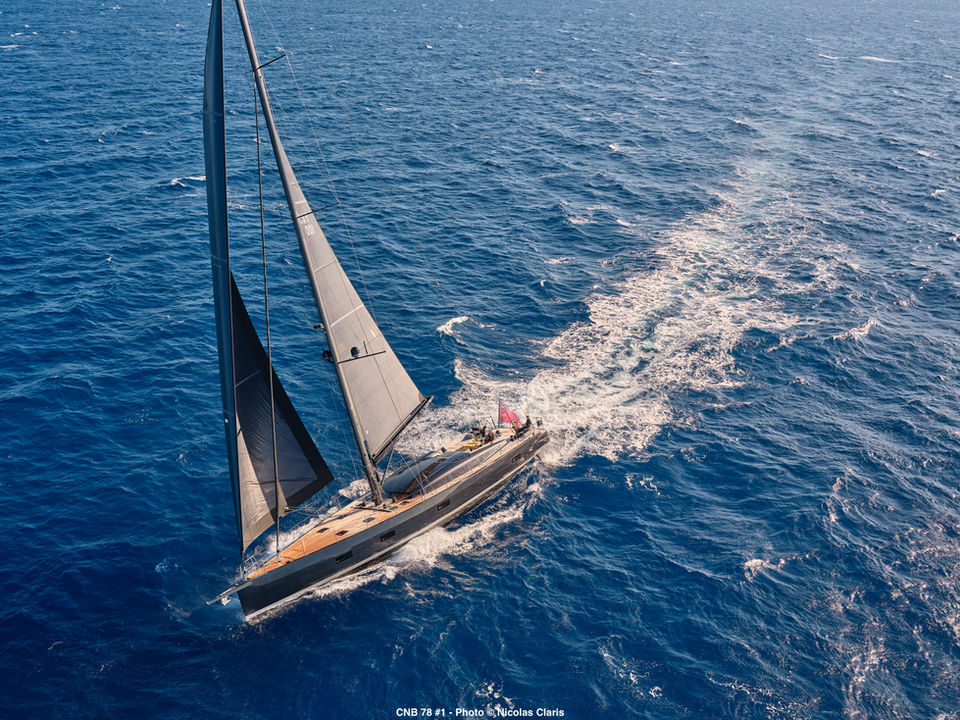

New CNB 78
€3.440.000 plus options
The hull is hand laminated with vinylester resin on all its external layers to have total protection against osmosis
PVC core is glued under vacuum infusion
Inner skin, internal structures and bulkheads also vacuum infused
Carbon fibre reinforcements on keel floors and side chainplates
Watertight bulkheads forward and aft fully laminated to hull and deck
Deck made with vacuum infused composite/PVC foam sandwich
Coachroof structures are reinforced with unidirectional carbon fibre
The entire structure is certified by RiNa according to the ISO 12215-5 rule
White gelcoat finish on hull, deck and helm seats
Antiskid white paint on coachroof
Gelcoat finish of the accessible bilge areas
Black waterline stripe on hull (optional colours available)
Cockpit sole and cockpit seats are laid with 10mm teak or Esthec
Main deck and swimming platform are optionally laid with 10mm teak or Esthec
Weldox fin keel with with lead bulb
The keel, built with a top plate, is fitted to the hull with stainless steel bolts
Twin hanging rudders with vacuum epoxy rudder blades and AISI630 rudder stocks
Stainless steel cable on steering car and traveller
Opening transom door/swim platform gives access to the tender garage
Fixed carbon bowsprit fixed on the bow with built in anchor system
We are acting as agents for the manufacturer of the Vessel. The manufacturer has provided details of the Vessel and these details are based on that information. The accuracy of these details cannot be guaranteed, nor do they constitute part of any contract. We would envisage and recommend close contact with the manufacturer to generate a specification which is appropriate for the planned usage as well as regular visits during the build process.
