Jeanneau 64
€790.000 VAT not paid
Description
An exceptional opportunity to purchase this privately owned and never chartered Jeanneau 64. JOHANNA’s first owner and only previous owner was an experienced sailor who has gone on to purchase a larger yacht. She has been lightly used and is available to purchase ex-VAT directly from the Solaris shipyard.
Notable Features
Master cabin aft, two double cabins forward. Huge saloon and separate nav station/office
Winged shoal keel with 2.20 metre draft
All furling rig, fully operable from the cockpit for short-handed sailing
Captive mainsail winch, electric furlers and rewind winches for push-button sailing
Hydraulically operated back stay and boom vang
North Sails mainsail, genoa and staysail new in 2023
Gennaker and code O from 2023
Bow thruster and stern thruster for easy handling in tight spaces
60.000 BTU air conditioning throughout
17,5 KVA generator and 120 lires per hour water maker for autonomy when cruising
Williams 285 new in 2022
Hydraulic Besenzoni gangway
New cockpit cushions, sprayhood and bimini in 2024
Specification
Year...
Location...
Flag...
Length...
Beam...
Draft...
2017
Aquileia, Italy
Italian
20.10m
5.40m
2.2m
CONSTRUCTION
The Briand designed hull features a hard chine designed to increase performance, speed, stability and also allows for a more spacious interior
The cockpit occupies over 40% of the deck area
Large windows in the hull allow plenty of light into the interior
Polyester resins used throughout
Teak laid cockpit, platform and side decks
GRP arch over cockpit providing support for cockpit canvas and removes main sheet from cockpit area
HULL
- Vacuum infused with discontinuous, end-grain balsa
- Solid laminate in keel area
- Barrier coat used to guard against osmosis
- Subflooring in saloon area framed with aluminium
- Winged shoal keel epoxy encapsulated cast iron (2.20 metres)
- Fully balanced spade rudder with a foam core and GRP skin over a stainless steel rudder post
- Steering system uses stainless steel cables driven by sprockets in the steering consoles
- Jefa auto-aligning bearings
COCKPIT
- Two composite steering consoles
- Tables and seating area to port and starboard separated from the sailing area aft
- Teak laid cockpit
- Fridge
- Sink
- Port side table on electric pedestal with infill cushion to create a large sun bed
- Extra dimmable LED lights in the cockpit, side decks and garage door
- Extra pad eyes installed
RIG SAILS AND WINCHES
RIG
Fractional rigged sloop
Keel stepped aluminium in-mast furling mast by Sparcraft
Triple swept back spreaders
Below deck captive winch for mainsheet
Fixed inner forestay with electric furler
Genoa on electric furler
Hydraulic adjustable backstay and boom vang
Rigging for Code 0
Upward and downward spreader lights
WINCHES
Two electric ST70 primary winches
Two electric ST60 rewind secondary winches
Genoa tracks on side deck for overlapping genoa
Spinnaker deck fittings
Double control buttons at the consoles for the rewind winches
Additional mast-mounted winch for tensioning halyards
Halyard tensioner tracks for halyards of the furling sails
SAILS
North Sails SRPC furling mainsail (2025)
North Sails SRPC furling genoa (2025)
North Sails SRPC furling staysail (2025)
Gennaker (2023)
Code 0 (2023)
ACCOMMODATION
Contemporary Winch Design interior finish with Alpi White Oak furniture
60.000 BTU multi-zone air conditioning throughout
LED interior lighting and dimmer switches for overhead and indirect lighting in saloon and cabins
Day bathroom in corridor between galley and master cabin
Electric flush fresh water toilets throughout
Corian tops in galley and bathrooms

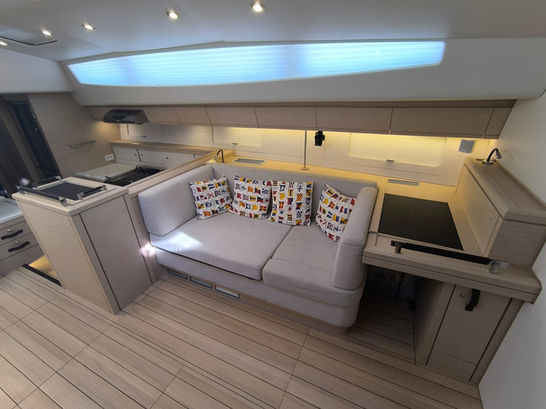

Saloon
- Seating area to starboard with folding table
- Sofa and desk to port
- Large nav station/office aft starboard
Galley & Domestic
- Miele convection microwave oven
- Electric induction stove with ceramic burners
- Fridge and two freezer drawers in galley
- Wine cooler in galley
- Miele dishwasher
- Washing machine with combined dryer
- Extractor fan
- Soft closing drawers
Full Beam Master Cabin Aft
- Island double bed (205 x 180cm)
- Large double hanging locker with interior courtesy lighting and six storage drawers in lower unit
- Vanity desk to port with swing out stool and sofa to starboard
- Night stands on each side of the bed with storage drawers and upper bookshelves
- Two fixed hull ports
- Two large curved opening ports into cockpit for ventilation and evacuation with pleated shades and insect screens
- Large en-suite bathroom
VIP Guest Cabins Forward – Symmetrical to Port and Starboard
- Double berth
- Hanging locker
- LED reading lights
- Indirect lighting
- Two large storage lockers
- Each with access to en-suite bathroom
ENTERTAINMENT
Fusion AV750 DVD/CD/MP3 player – one in saloon and one in master cabin
BOSE Acoustimass 3 speakers in saloon
BOSE 131 speakers in master cabin
Cockpit speakers
TV antenna for masthead
TV in saloon
TV in master cabin
Media hard drive with wireless connection
PROPULSION
VOLVO D4-180 HP
- Common rail fuel injection
- Hydraulic gearbox, rate 2:48
- 24V 110A alternator
- 12V 115A alternator
- EVC panel and 4” display
- Keyless ignition system
Sound insulation
GRP engine bed and liner
Dripless shaft gland with water lubrication
Stainless steel 40mm shaft with bronze P-bracket
Rope cutter on shaft
4-blade Flex-o-Fold folding propeller
Exhaust
- Stainless steel exhaust mixer
- Stainless steel exhaust fitting on hull
Ventilation
- Extractor fans located in engine room for maximum sound reduction
- Ventilation ducting vents exit in coaming
Fuel
- Primary tank: stainless steel 500 litre tank under main saloon
- Secondary tank: roto moulded 325 litre tank with transfer pump to primary tank
- Inline fuel/water separator with electronic sensor for water
- Fuel gauge at electrical panel
Bow thruster
- 24V with 240kg of thrust
- Mounted in 250mm flared tunnel moulded into the hull to reduce drag
- Dedicated battery bank
Stern thruster
- Retractable
- 24V with 240kg of thrust
- Dedicated battery bank
ELECTRICAL SYSTEM
12 / 24 / 220V electrical system
Generator: ONAN 17.5kW in lieu of standard
Inverter: Mastervolt 2000W
Alternators:
- 24V 110A alternator
- 12V 115A alternator
Charging:
- 24V 100A charger
- 24V 100A charger
- 12V 25A charger
Batteries:
- 420Ah domestic battery bank – new in 2023
- Engine start battery
- Generator start battery
- Dedicated bow thruster battery bank
- Dedicated stern thruster battery bank
Digital 3.5” display that show and controls AC voltage and source selection, battery monitoring, tank monitoring and fuel transfer system
Dedicated electrical closet accessibly in port, aft passage centralises electrical functions including 24V breaker panel for high-load equipment
220V shore power socket with cable
EU 220V sockets and USB sockets throughout
WATER SYSTEM
Fresh Water:
- Watermaker: Sea Recovery Aqua Whisper AM750 120 litres/hour
- High-pressure twin 24V pumps, inline filter and accumulator tank
- Three water tanks: 2 x 400 litres and 1 x 200 litres
- Tank manifold with selector valves located under saloon floor
- Fresh water foot pump in galley
- 80 litre hot water heater connected to engine heat exchanger and 220V electrical system
- Shore water connection in cockpit with water pressure regulator
- Water connection point and hose reel for wash down in anchor locker
- Extra water connection point for wash down installed in garage
- Shower in garage adjacent to swim platform
Black & Grey Water:
- Four 88 litre holding tank located under floor in forward and aft section with overboard macerator pump
- All black water macerator pumps new in 2023
- Collector system at each head compartment centralises sink and shower grey water for overboard discharge; this reduces the number of through hull fittings
Bilge Pumps:
- Electric bilge pump located in bilge sump area with activation via switch at electrical panel
- Dual-action manual bilge pump located in the cockpit
- Electric bilge pump located in forward sail locker
NAVIGATION & GENERAL
NAVIGATION
Raymarine instrumentation package
- i70 display
- Tri data
- Wind indicator
Raymarine autopilot with hydraulic ram
Raymarine multifunction GS125 touch screen at each helm
Additional Raymarine multifunction display in saloon
Raymarine 260 VHF with dual station and AIS receiver
AIS transponder
Fog horn and hailer
Raymarine 4kW HD digital radar
Starlink dish
GROUND TACKLE & MOORING
Retractable Besenzoni hydraulic gangway
Folding side ladders for ease of boarding when side-to
3000W 24V electric windlass with capstan to aid mooring
Stainless steel anchor
100m 14mm chain
Chain counter and windlass control at helm
Electric washdown pump in the anchor locker (fresh and salt water)
Roll up hose in anchor locker
Fairleads on transom
Fenders and mooring lines
COVERS & CUSHIONS
Sprayhood in Sumbrella fabric (2024) with windscreen function and LED lighting
Fold-away bimini in Sumbrella fabric (2024)
Bridge piece from sprayhood to bimini in Sumbrella fabric (2024)
Covers for helm stations and winches
Protective cover in Sunbrella fabric for the cockpit tables
Cockpit cushions with backrests Sumbrella fabric (2024)
Cockpit cushion insert for port-side table Sumbrella fabric (2024)
Aft sundeck mattresses
TENDER & TOYS
Williams 285 new in 2022
Electric air pump for inflating tender or toys located in the garage
SAFETY
Self-draining cockpit
13 escape hatches throughout the interior
Automatic engine room fire-extinguishing system with release handles under galley steps
Emergency tiller
Folding pad eyes
Bilge pumps
Emergency ladder
Please note that equipment such as life rafts, EPIRBs, fire extinguishers and flares require regular servicing and/or renewal. If such equipment is left on-board as part of the sale, the buyer should ensure the equipment is suited to their usage plans, assume service or replacement will be required by them after purchase and complies with any flagging requirements.
